고전압 부품

Home 고전압 부품 > 고전압 저항 > HV Non-inductive Film Resistors(EBG)

High Voltage Resistors 상위메뉴

Series SGT LowTCR - High Voltage Non-Inductive resistors
Resistance: 100kΩ - 1GΩ
Tolerance : 0.1% - 1%
TCR : 25ppm/℃
Operating Voltage: up to 30kV
PDF 다운로드
Series SGP/OGP - High Voltage Non-Inductive resistors
Resistance: 100kΩ - 10GΩ
Tolerance : 0.1% - 10%
TCR : 80ppm/℃
Operating Voltage: up to 48kV
PDF 다운로드
Series SSP/OSP - High Voltage Non-Inductive resistors
Resistance: 0.1Ω - 30MΩ
Tolerance : 0.1% - 10%
TCR : 50ppm/℃
Operating Power : up to 40W
PDF 다운로드
Series OSX/SSX/SOX - High Voltage Non-Inductive resistors
Resistance: 300Ω - 10GΩ
Tolerance : 0.1% - 10%
TCR : 100ppm/℃
Operating Voltage: up to 60kV
PDF 다운로드
Series MTX 968 - High Voltage Non-Inductive resistors
Resistance: 400Ω - 30GΩ
Tolerance : 0.1% - 1%
TCR : 100ppm/℃
Operating Voltage: up to 54kV
PDF 다운로드
Series MTX 969 - High Voltage Non-Inductive resistors
Resistance: 80Ω - 2GΩ
Tolerance : 0.1% - 10%
TCR : 10-200ppm/℃
Operating Voltage: up to 54kV
PDF 다운로드
Series MTX 969W - High Voltage Non-Inductive resistors
Resistance: 0.5Ω - 10MΩ
Tolerance : 0.1% - 10%
TCR : 100ppm/℃
Operating Power : up to 1700W
PDF 다운로드
Series FSX, FEX, FBX - High Voltage Non-Inductive resistors
esistance: 200Ω - 2GΩ
Tolerance : 0.5% - 10%
TCR : 80ppm/℃
Operating Voltage: up to 24kV
PDF 다운로드
Series FPX, FLX - High Voltage Non-Inductive resistors
Resistance: 10Ω - 2GΩ
Tolerance : 0.5% - 10%
TCR : 100ppm/℃
Operating Voltage: up to 96kV
PDF 다운로드
Series MTX 967 - High Voltage Non-Inductive resistors
Resistance: 10Ω - 30GΩ
Tolerance : 0.1% - 1%
TCR : 10-200ppm/℃
Operating Voltage: up to 35kV
PDF 다운로드

Power Resistors 상위메뉴

Series LXP 18 TO-220 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ
Tolerance : 0.5% - 10%
TCR : 50ppm/℃
Operating Power : up to 18W
PDF 다운로드
Series LXP 20 TO-220 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ
Tolerance : 0.5% - 10%
TCR : 50ppm/℃
Operating Power : up to 20W
PDF 다운로드
Series LXP 100 TO-247 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 50ppm/℃
Operating Power : up to 100W
PDF 다운로드
Series MXP 35 TO-220 - Power Non-Inductive Resistors
Resistance: 0.05Ω - 1MΩ
Tolerance : 0.5% - 10%
TCR : 50ppm/℃
Operating Power : up to 35W
PDF 다운로드
Series MSP 35 SMD TO-220 - Power Non-Inductive Resistors
esistance: 0.1Ω - 1MΩ
Tolerance : 0.5% - 10%
TCR : 50ppm/℃
Operating Power : up to 35W
PDF 다운로드
Series AXP 50 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 50-250ppm/℃
Operating Power : up to 50W
PDF 다운로드
Series AXP 100 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 50-250ppm/℃
Operating Power : up to 100W
PDF 다운로드
Series AXM - Power Non-Inductive Resistors
Resistance: 0.1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 120W
PDF 다운로드
Series GXP 120, SOT-227 - Power Non-Inductive Resistors
Resistance: 0.1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 120W
PDF 다운로드
Series HPP 150 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 150W
PDF 다운로드
Series VHP - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 180W
PDF 다운로드
Series HPS 150 - Power Non-Inductive Resistors
Resistance: 1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 150W
PDF 다운로드
HXP 200, SOT-227 - Power Non-Inductive Resistors
Resistance: 0.1Ω - 1MΩ
Tolerance : 1% - 10%
TCR : 250ppm/℃
Operating Power : up to 200W
PDF 다운로드

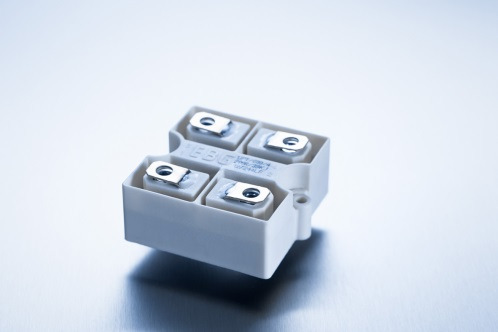

HXP 600, SOT-227 - Power Non-Inductive Resistors
Resistance: 0.15Ω - 5KΩ
Tolerance : 5% - 10%
TCR : 150ppm/℃
Operating Power : 1 x 600 W / 2 x 240 W / 3 x 135 W
PDF 다운로드

Ultra High Power Resistors 상위메뉴

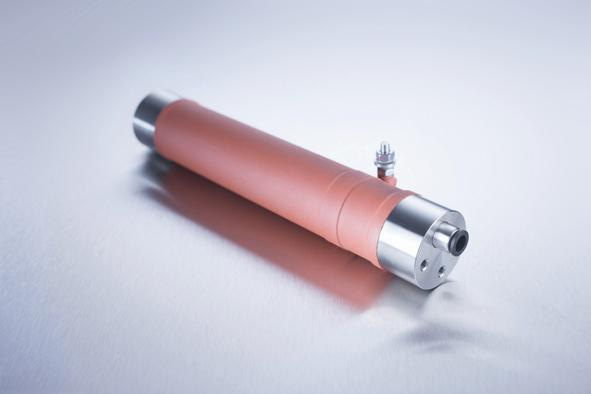

Series MTX 969W - High Power Water Cooled Resistors
Resistance: 0.5Ω - 10MΩ
Tolerance : 0.1% - 10%
TCR : 100ppm/℃
Operating Power : up to 1700W
PDF 다운로드

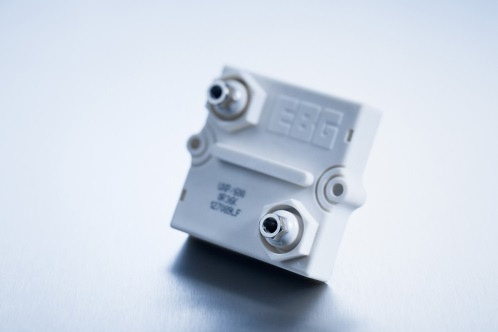

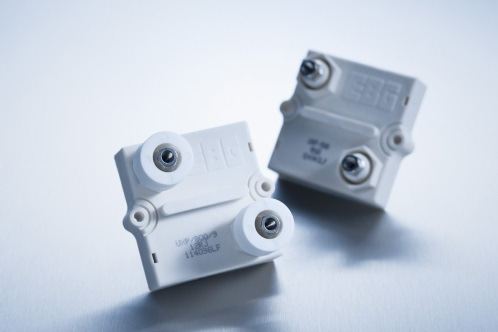

Series UXP 350 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.1Ω - 1MΩ
Tolerance : 5% - 10%
TCR : 150ppm/℃
Operating Power : up to 350W
PDF 다운로드

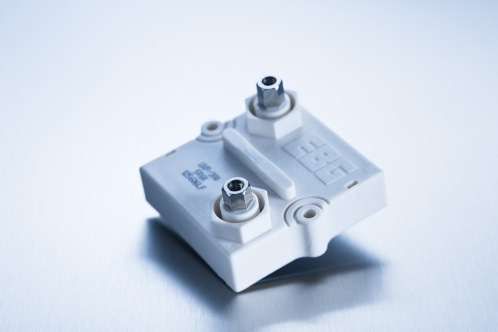

Series UXP 600 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.1Ω - 1.5MΩ
Tolerance : 5% - 10%
TCR : 150ppm/℃
Operating Power : up to 600W
PDF 다운로드
Series UXP 800 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.5Ω - 1MΩ
Tolerance : 5% - 10%
TCR : 150ppm/℃
Operating Power : up to 800W
PDF 다운로드

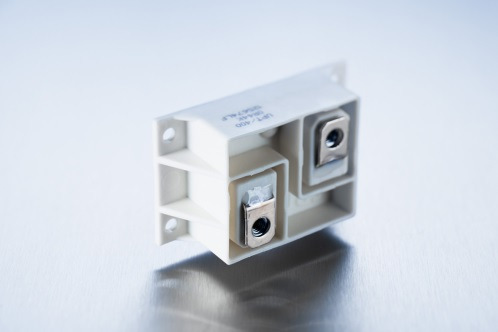

Series UPT 400 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.5Ω - 1MΩ
Tolerance : 5% - 10%
TCR : 150ppm/℃
Operating Power : up to 400W
PDF 다운로드
Series UPT 600 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.5Ω - 1MΩ
Tolerance : 5% - 10%
TCR : 150ppm/℃
Operating Power : up to 600W
PDF 다운로드
Series UPT 800 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.5Ω - 1MΩ
Tolerance : 5% - 10%
TCR : 150ppm/℃
Operating Power : up to 800W
PDF 다운로드
Series UXM 400 - Ultra High Power Non-Inductive Rsistors0
Resistance: 0.5Ω - 5Ω
Tolerance : 5% - 10%
TCR : 500ppm/℃
Operating Power : up to 400W
PDF 다운로드

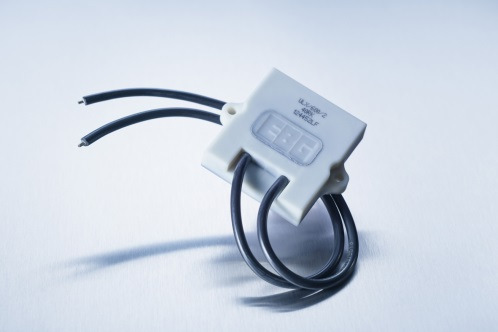

Series ULX 600 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.5Ω - 1MΩ
Tolerance : 5% - 10%
TCR : 150ppm/℃
Operating Power : up to 600W
PDF 다운로드
Series ULX 800 - Ultra High Power Non-Inductive Rsistors
Resistance: 0.1Ω - 1MΩ
Tolerance : 5% - 10%
TCR : 150ppm/℃
Operating Power : up to 800W
PDF 다운로드

Voltage Divider 상위메뉴

Series MTX 2000 - Voltage Divider
Resistance: on request
Tolerance : 0.1% - 1%
TCR : 25-50ppm/℃
Operating Power : up to 50W
PDF 다운로드
Series HVT - Flat Style, Precision Voltage Divider
Resistance: on request
Tolerance : 0.1% - 1%
TCR : 15-50ppm/℃
Operating Voltage : up to 32kV
PDF 다운로드
Series MTX 1000 - Flat Style PrecisionVoltage Divider
Resistance: on request
Tolerance : 0.1% - 1%
TCR : 15-50ppm/℃
Operating Voltage : up to 32kV
PDF 다운로드
Series 1776-x - Precision Decade Voltage Divider
Resistance: on request
Tolerance : 0.1% - 0.5%
TCR : 10-50ppm/℃

PDF 다운로드

Shunts 상위메뉴

PCS - Precision Current Shunt Resistors
Resistance: 0.5mΩ - 1Ω
Tolerance : 1% - 5%
TCR : 60-500ppm/℃
Operating Power : up to 100W
PDF 다운로드

Metal Film 상위메뉴

Series UPR/UPSC - Extremely Precise Metal Film
Resistance: 10Ω - 255kΩ
Tolerance : 0.01% - 1%
TCR : 3-15ppm/℃
Operating Voltage : up to 300V
PDF 다운로드
Series NE/EE - Precision, Molded Style, Metal Film
Resistance: 0.025Ω - 15MΩ
Tolerance : 0.02% - 5%
TCR : 5-50ppm/℃
Operating Voltage : up to 350V
PDF 다운로드

Custom Designed Resistors 상위메뉴

Custom-designed - Custom Designed Resistors




PDF 다운로드
