고전압 부품 > 고전압 케이블 & 컨넥터 > High Voltage Connectors

Single Pin High Voltage Connectors 상위메뉴

Series S - Single Pin High Voltage Connectors
Operating voltage: 10 - 40 kV DC Rated current: 30 A Contact resistance: 300 μΩ Number of pins: 1
Series 100 - Single Pin High Voltage Connectors
Operating voltage: 10 - 100 kV DC Rated current: 30 - 80 A Contact resistance: 300 μΩ Number of pins: 1

Multi Pin High Voltage Connectors 상위메뉴

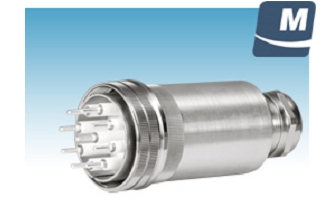

M Series - Multi Pin HV Connectors
Operating voltage: 12 kV DC Rated current: 30 A Contact resistance: 300 μΩ Number of pins: 2 - 9

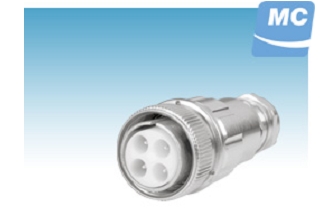

MC Series - Multi Pin HV Connectors
Operating voltage: 10 kV DC Rated current: 13 A Contact restistance: ≤ 5 mΩ Number of pins: 2 - 5

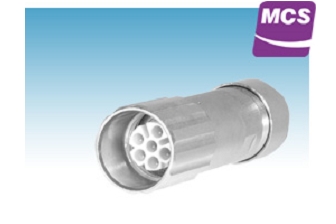

MCS Series - Multi Pin HV Connectors
Operating voltage: 5 kV DC Rated current: 4.5 A Contact restistance: ≤ 0,7 mΩ Number of pins: 2 / 4 / 6

Variable High Voltage Connectors 상위메뉴

Series VP - Variable HV Connectors
Operating voltage: 13 kV DC Rated current: 13 A Contact resistance: ≤ 5 mΩ Number of pins: 1-3

Modular High Voltage Connectors 상위메뉴

Series MOD, Type HP - Modular High Voltage Connectors
Operating voltage: 12 kV DC Testing voltage: 18 kV DC Rated current: 25 A Contact resistance: ≤ 2 mΩ
Series MOD, Type T - Modular High Voltage Connectors
Operation voltage: 12 kV DC Testing voltage: 18 kV DC Rated current: 30 A Contact resistance: 300 μΩ
Series MOD, System Components - Modular High Voltage Connectors
High voltage, 2 Pin per module, up to12 kVDC Signal transmission, 3 - 20 pin per module, up to 630 V Coaxial, 3 pin per module, 250 V Data transmission, RJ45 CAT5e / USB Type 2, 4 x 400 V contacts
