High Voltage Components > High Voltage Resistors > HV Non-inductive Film Resistors(EBG)
High Voltage Resistors
상위메뉴
Series SGT LowTCR -

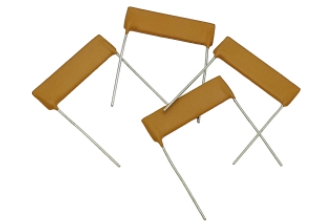

High Voltage Non-Inductive resistors
Resistance: 100kΩ - 1GΩ
Tolerance : 0.1% - 1%
TCR : 25ppm/℃
Operating Voltage: up to 30kV
Series SGP/OGP -
High Voltage Non-Inductive resistors
Resistance: 100kΩ - 10GΩ
Tolerance : 0.1% - 10%
TCR : 80ppm/℃
Operating Voltage: up to 48kV
Series SSP/OSP -
High Voltage Non-Inductive resistors
Resistance: 0.1Ω - 30MΩ
Tolerance : 0.1% - 10%
TCR : 50ppm/℃
Operating Power : up to 40W
Series OSX/SSX/SOX -
High Voltage Non-Inductive resistors
Resistance: 300Ω - 10GΩ
Tolerance : 0.1% - 10%
TCR : 100ppm/℃
Operating Voltage: up to 60kV
Series MTX 968 -
High Voltage Non-Inductive resistors
Resistance: 400Ω - 30GΩ
Tolerance : 0.1% - 1%
TCR : 100ppm/℃
Operating Voltage: up to 54kV
Series MTX 969 -
High Voltage Non-Inductive resistors
Resistance: 80Ω - 2GΩ
Tolerance : 0.1% - 10%
TCR : 10-200ppm/℃
Operating Voltage: up to 54kV
Series MTX 969W -
High Voltage Non-Inductive resistors
Resistance: 0.5Ω - 10MΩ
Tolerance : 0.1% - 10%
TCR : 100ppm/℃
Operating Power : up to 1700W
Series FSX, FEX, FBX -
High Voltage Non-Inductive resistors
esistance: 200Ω - 2GΩ
Tolerance : 0.5% - 10%
TCR : 80ppm/℃
Operating Voltage: up to 24kV
Series FPX, FLX -
High Voltage Non-Inductive resistors
Resistance: 10Ω - 2GΩ
Tolerance : 0.5% - 10%
TCR : 100ppm/℃
Operating Voltage: up to 96kV
Series MTX 967 -
High Voltage Non-Inductive resistors
Resistance: 10Ω - 30GΩ
Tolerance : 0.1% - 1%
TCR : 10-200ppm/℃
Operating Voltage: up to 35kV
