고전압 부품 > 고전압 캐패시터 > HV Ceramic Capacitors
High Energy Ceramic Capacitors
상위메뉴

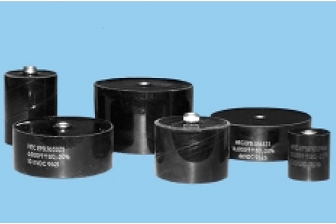

EPSR Series -
High Voltage Pulse Power
- Capacitance : up to 4000pF
- Working Voltage : up to 40kV
- One Year Warranty

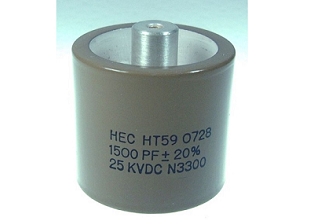

HT59 Series -
Ceramic Capacitors
- 25 kVDC Working Voltage
- 50 kVA Max Power
- 50 to 1500 pF Capacitance
- 2.25” Diameter x 3” Maximum Length

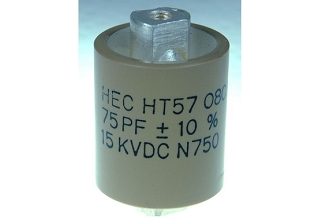

HT57 Series -
Ceramic Capacitors
- 15 kVDC Working Voltage
- 35 kVA Max Power
- 10 to 500 pF Capacitance
- 1.187" Diameter x 1.890" Maximum Length

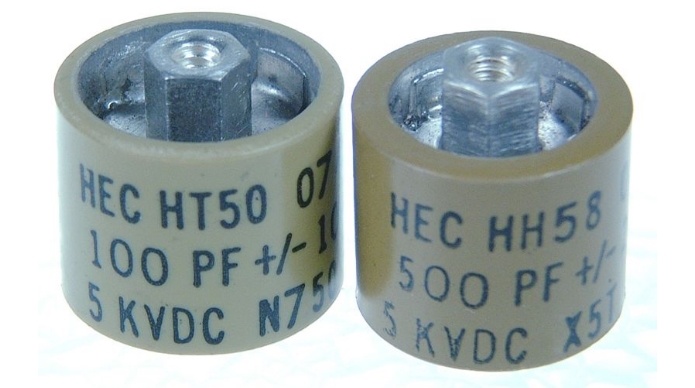

HT50 Series -
Ceramic Capacitors
- 7.5 kVDC Working Voltage
- 10 kVA Max Power
- 10 to 700 pF Capacitance
- 0.820" Diameter x 0.890" Maximum Length
HT58 Series -
Ceramic Capacitors
- 7.5 kVDC Working Voltage
- 10 kVA Max Power
- 10 to 700 pF Capacitance
- 0.820" Diameter x 0.890" Maximum Length

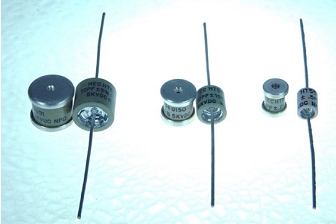

HT53 Series -
Ceramic Capacitors
- 5 kVDC Working Voltage
- 7 kVA Max Power
- 1 to 40 pF Capacitance
- Threaded Terminals or Wire Leads
HT54 Series -
Ceramic Capacitors
- 5 kVDC Working Voltage
- 5 kVA Max Power
- 1 to 40 pF Capacitance
- Threaded Terminals or Wire Leads
HT55 Series -
Ceramic Capacitors
- 5 kVDC Working Voltage
- 3 kVA Max Power
- 1 to 40 pF Capacitance
- Threaded Terminals or Wire Leads

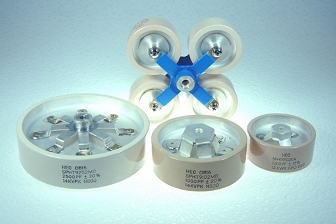

SPHT Ferris Wheel -
Ceramic Capacitors
- 20 kVDC Working Voltage
- Up to 150 kVA Max Power
- 50 to 10000 pF Capacitance

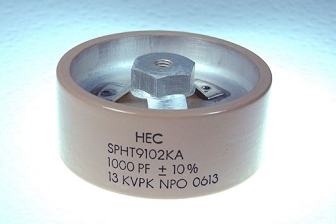

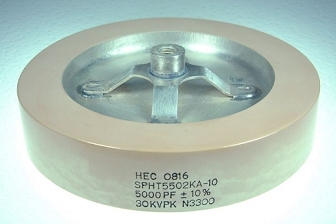

SPHT 155mm -
Power Disk Ceramic Capacitors
- Up to 30 kVDC Working Voltage
- Up to 90 kVA Power Rating
- 50 to 7000 pF Capacitance
- 70, 100, 140 and 165 mm Diameters

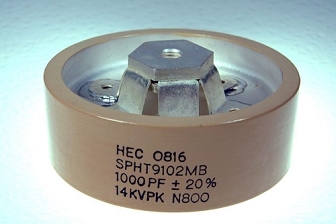

SPHT 100mm -
Power Disk Ceramic Capacitors
- Up to 30 kVDC Working Voltage
- Up to 90 kVA Power Rating
- 50 to 7000 pF Capacitance
- 70, 100, 140 and 165 mm Diameters
SPHT 70mm -
Power Disk Ceramic Capacitors
- Up to 30 kVDC Working Voltage
- Up to 90 kVA Power Rating
- 50 to 7000 pF Capacitance
- 70, 100, 140 and 165 mm Diameters

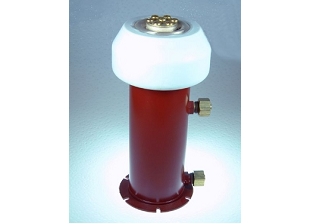

PWC Water-Cooled -
Ceramic Capacitors
- 10 to 25 kVDC Working Voltage
- Up to 4000 kVA Power Rating
- 400 to 10000 pF Capacitance
- One Year Warranty

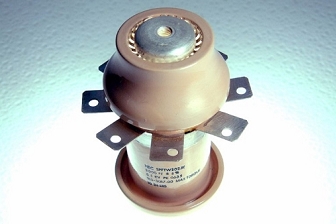

SPFT Feed Thru -
Ceramic Capacitors
- 8.5 to 40 kVDC Working Voltage
- Up to 4000 kVA Power Rating
- 150 to 4000 pF Capacitance
- One Year Warranty

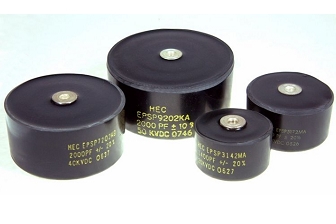

EPSP Series -
Pulse Power Ceramic Capacitors
- High Amplitude, Short Pulse Rated
- Up to 50 kVDC Max Working Voltage
- Compact & Epoxy Encapsulated
- Low (0.5%) Dissipation Factor

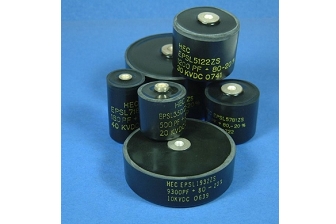

EPSL Series -
Ceramic Capacitors
- Designed For High Voltage DC-Blocking
- High Capacitance Values in Small Size
- Rugged & Epoxy Encapsulated
- High-Torque Terminals Available
HH57 Series -
Ceramic Capacitors
- Compact High Capacitance Parts
- 7.5 and 15 kVDC Power Ratings
- Broadcast Barrel Package
- Metric or English Terminals

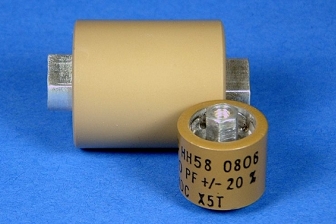

HH58 Series -
Ceramic Capacitors
- Compact High Capacitance Parts
- 7.5 and 15 kVDC Power Ratings
- Broadcast Barrel Package
- Metric or English Terminals
