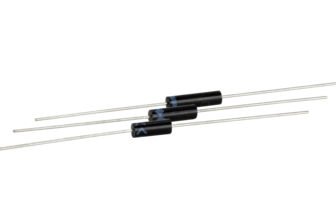

High Voltage Components > High Voltage Diode > Axial Lead Low Current Diodes

Axial Lead Low Current Diodes 상위메뉴

DV Series - Axial Lead Low Current Diodes
- Peak Reverse Voltage (Vrrm): 6 to 10kV - Ave. Max Forward Current (IFAVM): 55 to 75mA - Max. Reverse Recovery Time (Trr): 75nS
GFS Series - Axial Lead Low Current Diodes
- Peak Reverse Voltage (Vrrm): 6 to 30kV - Ave. Max Forward Current (IFAVM): 25mA - Max. Reverse Recovery Time (Trr): 100nS
GFSA Series - Axial Lead Low Current Diodes
25 mA, 2 to 5 kV, 75 nS Subminiature Package
HL Series - Axial Lead Low Current Diodes
40 mA, 3 to 12 kV, 100 nS Miniature Package
HVEF Series - Axial Lead Low Current Diodes
20 to 25 mA, 8 to 12 kV, 20 nS Miniature Package
HVRL Series - Axial Lead Low Current Diodes
55 to 75 mA, 15 to 40 kV, 100 nS Miniature Package
HVRT Series - Axial Lead Low Current Diodes
40 to 60 mA, 8 to 30 kV, 100 nS Miniature Package
NV Series - Axial Lead Low Current Diodes
20 mA, 2 to 5 kV, 80 nS Subminiature Package
